196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum

196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum
196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum
196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum

Large Image :  196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum

Product Details:
Place of Origin: CHINA
Brand Name: SLFIBER
Certification: CE ROHS
Model Number: ADSS-196B1.3
Payment & Shipping Terms:
Minimum Order Quantity: 3000 METER
Price: NEGOTIABLE

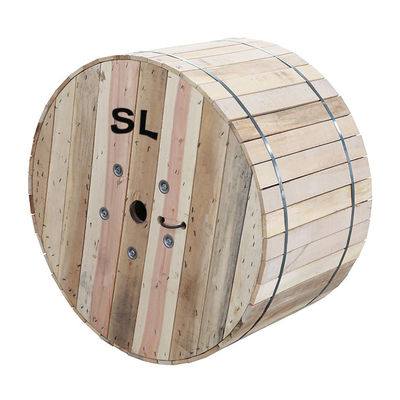

Packaging Details: 3KM per Export Drum
Delivery Time: 2 week after payment ( 20GP container)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300KM/DAY

196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum

Description
Product NAME: All Dielectric Self Supporting Fiber Optic Cable Cable TYPE: ADSS Outdoor Cable
FIBER COUNT: 196 Core FIBER TYPE: Single Mode Fiber
SHEATH: PE Outer Sheath+PE Inner Sheath Aramid Yarn Cable COLOR: BLACK JACKET OR AS ORDER
SPAN: 300 METER Application: Transmission Network
Tube: PBT
High Light:

G652D ADSS Fiber Optic Cable

,

196C ADSS Fiber Optic Cable

,

G652D all dielectric fiber optic cable



196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3 KM per Drum





Double Layer Aerial ADSS Cable is used for communication cable of overhead high - voltage electricity transmission system,it also can be used as communication cable at the areas where lighting is frequent or long distance.


Characteristics
1: Durable, and High Performance Cable solution for the Electrical Power networks and other Aerial use.
2: Can be Installed with a live line , No need shut down power supply.
3: Can be designed to the longest span is 1000meter or more .
4: Cost Effective solution for short span
5:Meet the demand for high-growth, high-bandwidth networks.
6:Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.


Structure Characters:
All dielectric Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period



Appicable fieds:
1: Long-distance teecom,LAN in high -votage area or access to telecom network
2: Installation: Sef-support aerial
3: Aerial Application including power transmission and distribution networks
4: Duct Installations
5: Good to use in Electromagnetic fields, no need for expensive cable shielding or grounding accessory



Construction:

250μm Colored Fiber
PBT loose Tube
Tube Filling Compound ( Gel )
FRP central strength member
Cable filling compound
PE inner sheath
Aramid yarn
PE outer sheath



Item Parameters
Fiber Type G652D
Count 2-288 Cores
Loose tube Material PBT
Color All colors display
Filler Material HDPE
Color Natural color
Central Strength Member Material FRP
Non-metal reinforced pieces Matrial Aramid yarn
Outer jacket Material HDPE
Min.bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N; number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage
Crush Short term 1000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious
addition attenuation, no fiber break and no cable damage
Impact Impact energy : 450g x 1m; radius of hammer head:12.5mm;
number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.





Fiber color code 1 2 3 4 5 6
Blue Orange Green Brown Slate White
7 8 9 10 11 12
Red Black Yellow Violet Rose Aqua







196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 0











196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3KM/Drum 1



OPTICAL FIBER
Fiber Type G.652D
Mode Field Diameter @ 1310 nm 9.2±0.4µm
@1550 nm 10.4±0.8µm
Cladding Diameter 125.0±0.7µm
Core concentricity error ≤ 0.5µm
Cladding non-circularity ≤ 1.0%
Coating diameter 245±10µm
Attenuation @ 1310 nm ≤ 0.36 dB/km
@ 1550 nm ≤ 0.22 dB/km
Dispersion @ 1285 -1330nm ≤ 3.4 ps/(nm.km)
@ 1550 nm ≤17.5 ps/(nm.km)
Zero dispersion wavelength 1300~1324 nm
zero dispersion slope ≤0.092 ps/(nm2.km)
cable cut-off wavelength ≤1260 nm
Proof stress ≥ 0.69 Gpa
Polarization mode dispersion ≤0.2 ps/√Km
Uncabled fiber macrobending loss Radius(mm) 15
number of turns 10
Max.@ 1550nm(dB) 0.25
Max.@ 1625nm(dB)

1













Ref. Outer Ref. Weight Rec. Daily Max. Max Allowable Break Strength Modulus of Heat Suitable Span
Diameter (kg/km) Working Tension Working Tension Strength Member Elasticity Expansion (NESC Standard,m)
(mm)   (kN) (kN) (kN) CSA CSA Coefficient
  PE Jacket AT Jacket       (mm2) (kN/mm2) (x10- 6/K) A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18 0.3 670 460 650 460
15.5 190 204 9 26 60 32.2 19.1 0.1 750 530 750 510



FAQ:



Q : Why Choose us be one of your partner?
A : 1 ) Quality Assurance
2 ) Quick Response
3 ) Free Sample Available
4 ) Win-Win Price offer


Q: What is your fiber brand?
A:Corning, YOFC, Fiberhome,etc



Q: Shipping and delivery?
A; For Large orders By sea (LCL or FCL)



Q: Payment?
A: For Large order : TT, L/C
For Small order: TT, Western Union.
