Product Details:
|
| Cable Name: | Cat6 Ethernet Cable | TYPE: | Cat6 Gigabit Internet Cable |
|---|---|---|---|
| Conductor Materoa;: | Copper | Conductor: | 24 Awg 0.50mm |
| Shieled: | Foil Shieled | Jacket: | PVC |
| Packing: | 305M Drum | Transmission Rate: | 1Gigabit |
| High Light: | 0.5mm Cat 6 Ethernet Cable,Cat 6 Ethernet Cable 305m,Category 6 Network Cable 100Ohms |
||

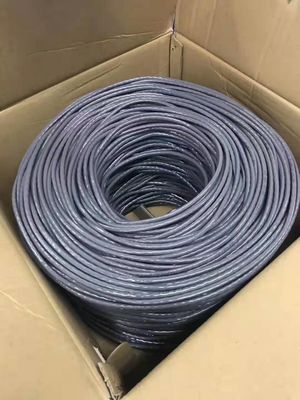

24AWG 0.5mm CU FTP Category 6 100 ohms PVC 4Pair Gigabit Network Cable
250MHZ FTP Shielded High performance data communications cable super good for use in voice, data, video and security application. SL Cat6 Bulk Cable is ideal for your network installation for home, office and entire campus. SL Cable has the solution thats right for you. SL CAT6 FTP shielded CM cable supports all CAT6 applications. This cable is designed for indoor installations.
STRUCTURE:
4 pairs of 24AWG solid bare Copper conductors
HDPE Insulatioin
4Pair Twisted
Aluminum Foil Shielding (FTP)
Central X spline Separator
PVC Jacket
SL Cable's Cat6 FTP shielded cable is quality manufactured to meet and exceed product certifications and standards TIA/EIA -568-B.2. This cable is packed and shipped in 1000ft /305 meter on a wooden spool.
APPLICATION
• 10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 1000 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)
FEATURE
High-performance data communications cable for noisy environment
Suitable for 250MHz high speed data applications, Gigabit Ethernet, fast
Ethernet and 155Mbps TP-PMD/CDDI
Designed for indoor installations (CMR) riser
Category-6 foil shielded twisted pair (FTP) cable
4-Pair – easily identified color-striped pairs
24AWG solid bare copper conductors
Excellent attenuation and crosstalk characteristics
Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
ETL Listed
Supplied in 1000 ft. wooden spool
| Frequency Range: | 1 - 500 MHz |
| Max. DC Resistance : | 9.38 Ω/100m |
| Max. Resistance Unbalance: | 5% |
| Max. Mutual Capacitance: | 5.6 nF/100m at 1Khz |
| Max. Capacitance Unbalance: | 330/100m at 1Khz |
| Voltage Rating 300V Dielectric Strength: | 2.5 KV/2S |
| Min. Insulation Resistance : | 5000 MΩ •KM |
| Maximum Pulling Force | 100 N |
| Minimum Bending Radius | 8* O.D. |
| Max. Operating Temperature: | ‘+60 °C B109 |
| Min. Operating Temperature: | ’ -15 °C |
| Max. Installation Temperature: | ‘+50 °C |
| Min. Installation Temperature: | 0 °C |
Ordering Information
| Part number | Description |
| SL-FTP-BC6-PVC-GY | F/UTP - Foiled Unshielded Twisted Pair ,Category 6A, 4Pair, Solid PVC,305m Box |
| SL-FTP-BC6-LSZH-GY | F/UTP - Foiled Unshielded Twisted Pair ,Category 6A, 4Pair, Solid LSZH,305m Box |
|
PS: 1: Also, available in Black (BK), Blue (BL), Green(GN), Orange (OR), Red (RD), White (WH), Yellow (YL) for bulk orders |
|
Q1: Is it possible to customize our brand information on the cable?
A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.
Q2: Can you pass FLUKE test?
A: Yes, all SL networking cable can pass Fluke channel, component and permanent link test per customers' request.
Q3: What is your MOQ of your products?
A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock
the bulk cable with us for your urgent order production.
Q4: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.
Q5: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag
and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even
can open the new tooling for your specific project.
Q6 : Are You Factory ?
A 6: Yes, our cable factory have 13 years production experience.
