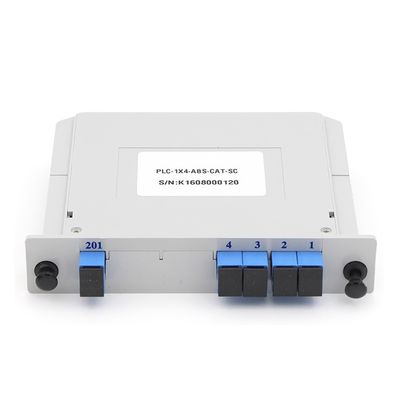

Single Mode SC UPC FTTx Fiber PLC Splitter 1X4 Cassette Plug In Type

Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type
Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type

Large Image :  Single Mode SC UPC FTTx Fiber PLC Splitter 1X4 Cassette Plug In Type

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SLR
Certification: CE ROHS
Model Number: SL-Plug In- PLC-1x4
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: Blister or Bag packing
Delivery Time: 8 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 7000pcs/day

Single Mode SC UPC FTTx Fiber PLC Splitter 1X4 Cassette Plug In Type

Description
Name Name: 1x4 Plug-In Fiber PLC Splitter Type: 1X4 Insert Card Type PLC Splitter
Model Types: SC Fiber PLC Splitter Parameter: 1x4 PLC
Fiber Type: Single Mode Fiber Connector: SC / APC. SC/UPC
High Light:

FTTx Fiber PLC Splitter

,

FTTx PLC Splitter 1X4

,

FTTx cassette plc splitter

1X4 SC / UPC Box Type PLC Splitter Cassette Plug In Type Splitter Single Mode



Mini plug-in PLC splitter is now widely used in FTTx project, especially at the distribution points near the end users of the FTTx networks. It provides fast installation and low space requirement helping to alert the deployment of FTTs projects. Fiber pigtails for input and output can be directly connected with this passive component easily.


PLC Splitter is based on planar lightwave circuit technology. SL 1x2 Fiber PLC Splitter can distribute or combine 1 optical signal into 16 outputs fibers.



Small Size and Compact Design:
Usually mounted in the FTTx box for fiber optic signal distribution, saving time and space but still providing reliable
protection for fiber optic splitter



Product Details :


- Insert Type High Quality SC/UPC 1X16 Fiber Optic PLC Splitter / Divider ;
- PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides
a low cost light distribution solution with small form factor and high reliability.
- 1*N and 2*N all series products can be provided according to the requirements of customer.· Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 0Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 1

Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 2





















Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 3



Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 4



Application:


• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)





Feature:


· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm



Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 5

Parameters   Specification
Operating Wavelength (nm) nm 1260~1650
Channel Number   1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 7.5 10.7 13.7 17 20.7
Insertion Loss without Connector (Max) dB 7.2 10.5 13.5 16.5 20.5
Uniformity (Max) dB 0.8 1 1.4 1.7 2.5
PDL dB 0.2 0.2 0.3 0.3 0.3
Return Loss dB
Directivity dB
Packaging Dimension (LXWXH) mm 130*100*25 130*100*25 130*100*50 267*100*50 267*100*102







Enviroment Conditions
Operationg Temperature -40 ~ +85
Operationg Temperature -40 ~ +85
Operating Humidity %RH 93
Storage Humidity %RH 93



Cable Info
Fiber Type G 657A
Pigtail Cable 900 um
Connector SC/APC
2xN Splitter Only Single Chip



Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 6    Single Mode SC UPC FTTx  Fiber PLC Splitter 1X4 Cassette Plug In Type 7
