Product Details:
|
| Model: | OM4 MPO / MTP Fiber Optic Patch Cable | Connector Type: | MPO / MTP |
|---|---|---|---|
| Length: | 1m To 30m | Application: | Telecom/network/data Center |
| Fiber Mode: | OM4 50/125μm | Color: | Purple Or OEM |
| High Light: | 12F MPO MTP Patch Cord,12F Om4 Fiber Optic Cables,50/125μm Om4 Fiber Optic Cables |
||

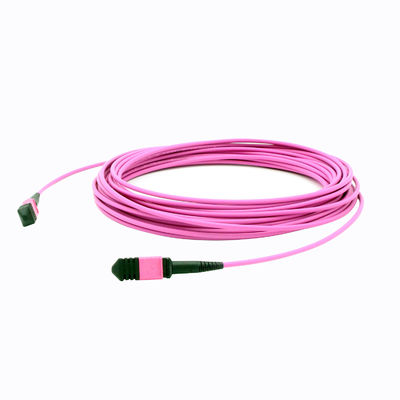

Multimode MPO / MTP 8F / 12F Fiber Optic Brunch Patch Cord MPO MTP Fiber Patch Cord
MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.
· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,
40G / 100G SFP and SFP .
MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.
Features:
※Polarity available in Type A, Type B, Type C, Type R
※Insertion loss type available in Standard, Elite / Low Loss
※Fiber count available in 8, 12, 24, 48
※MTP/MPO connector type available in Male, Female, Male to Female
※Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
※Cable jacket type available in OFNR, LSZH, OFNP
※Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
※Cable length available in 1 to 999 meters
※Cable type available in round, ribbon
※Improve and simplify fiber routing, decrease fiber management space
※Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS
| Fiber Count | 8 - 48 Fiber |
| Fiber Type | SM : OS2 9 / 125 um MM : OM3 / OM4 50/125 um |
| Connector Type | MPO ,MTP, MTP Pro |
| Polarity | Type A, Type B, Type C |
| Insertion Loss | SM: ≤0.75dB (Standards) ,≤0.35dB (Elite Low) MM:≤0.50dB (Standards) ,≤0.30dB (Elite Low) |
| Return Loss | SM: UPC≥50dB,APC≥60dB MM: ≥20dB |
| Wavelength | SM:1310/1550nm MM:850/1300nm |
| Transmition Length | OM4: 150m at 40/100G, 550m at 10G, OM3: 100m at 40/100G, 300m at 10G |
| Working Temp. | ‘-40℃ to + 75 ℃ |
| Storage Temp. | ‘-40℃ to + 85 ℃ |
| Standards | ROHS, CE Telecordia GR-1435-CORE IEC 61753-1 IEC 61754-7 IEC 61755-3-31/32 TIA 605-4 TIA 568.3 D YD/T1272.5 |
