Product Details:
|
| Name: | SSTP Cat 7 Flat Patch Cord | Type: | Flat Cat.7 Jumper Wire |
|---|---|---|---|
| Conductor: | BC (BARE COPPER) | Wire Guage: | 32 Awg |
| Core Diameter: | 7*0.08mm | Jacket Material: | ROHS PVC OD 2.2*7.2mm |
| Plug: | RJ45 Male-RJ45 Male | Color: | Red, Black, White, Yellow, Blue, Orange, Green, ...OEM |
| Length: | 25M ,20M,15M,8M,5M,3M,1M,75ft,50ft,25ft,20ft,15ft,6ft,3ft, OEM | Transmission Rate: | 10 Gbps |
| Transmission Bandwidth: | 1000MHZ | ||
| High Light: | CAT7 SSTP Copper Patch Cords,7*0.08mm 32awg Copper Patch Cords,32awg cat 7 patch cord |
||

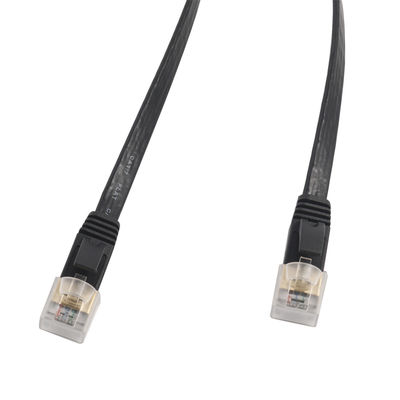

CAT7 SSTP FLAT COPPER PATCH CORDS Category 7 STP Jumper Wire 10G Ethernet Patch Cable
SL CAT 7 SSTP FLAT Patch Cord is the excellent choice for home and office networks, it can connect all the network equipment via the LAN , such as Xbox One, Xbox 360, Switches, Routers Modems, PS3, PS4, Computer, Laptop, Printers, Network Printers, Network Attached Storage Device, ADSL, NAS, VoIP phones and more.
SL CAT7 Patch lead not only support ultra fast and reliable network connection , also give the best comfortable internet browsing experience.
Pure copper conductor, double shielded twist pairs ensure the high singal and data transmission.
| Brief Information | |
| Cable Type | CAT7 4-Pair SSTP |
| Connector Type | Gold-Plated RJ45(8P8C) |
| Cable Performance | Up to 600 MHz |
| Conductor Gauge | 32AWG |
| Cable Structure | Stranded |
CAT7 network cable Transmit data at speeds up to 10 Gigabit ; High bandwidth of up to 600 MHz, supports high-speed data transfer for online gaming and online high definition video streaming, server applications, cloud computing, video surveillance
Backwards compatible with older CAT6, CAT6e, CAT5 and CAT5e ethernet cable.
Flat Design&Free Clips:saving wiring space, Suitable for tiled ground, tabletop, corner .
Advantage :
Tangled free and well connection
Flexibly surf the internet with peak hours
Double Screen layers ensures stable networking
Gold-Plate RJ45 Plug anti electromagnetic interference
Stable and Smoth gaming experience
Fast download speed
No delaying HD Video
Provide excellent bandwidth beyond 600 MHz.
Support 10 Gigabit Ethernet application.
Meet the strict flame retardancy and environmental requirements in Europe and US.
Different jacket materials available for choice
| Plugs | |
| Housing & Boots | PC resin |
| Shielding | Copper Alloy, Gold Plated |
| Contacts | 50 U gold plated |
| Color Code | Follow TIA/EIA 568B |
Features:
100% tested at factory
Flat Cable Design
Oxgen free Copper Conductor Twist Pair , with 28AWG , ( 26AWG chooseable)
Double Shieled with foil and mesh
Wear-resistant RJ45 Plug
Insertion test 10000times
50U Gold Plate Connector
Backwards compatible with older CAT7, CAT6, CAT6e, CAT5 and CAT5e cable standards.
Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T, 40GBase-T, HDBase-T A & B and ATM, CATV
Application:
Desktop/Laptop/Router/Switch/TV/Smart box/Digital printer
Internet Cafe/Community/Supermarket/Department Store/KTV/Club/Hotel/School/Building
| Ordering Information | |
| Part number | Description |
| SL-SSTP-C7-PVC-F-GY-XXM | Shielded Twisted Pair Cable (SSTP), Category 7, 4 Pairs, Stranded, Flat, PVC, XXM |
| SL-SSTP-C7-LSZH-F- GY-XXM | Shielded Twisted Pair Cable (SSTP), Category 7 4 Pairs,Stranded, Flat, LSZH, XXM |
|
PS: 1: Also, available in Black (BK), Blue (BL), Green(GN), Orange (OR), Red (RD), White (WH), Yellow (YL) for bulk orders
|
|
| Compare list | |||||
| CATEGORY | RATE | BANDWIDTH | DISTANCE | CABLE TYPE | APPLICATION |
| CAT 8 | 40 Gbps | 2000Mhz | 30M | Double Shield | High Speed bandwith enviroment, Data Center |
| CAT 7 | 10 Gbps | 600Mhz | 100M | Double Shield | High Speed bandwith enviroment, Data Center |
| CAT 6A | 10 Gbps | 500Mhz | 100M | Shield/unshield | Large enterprises, High Speed application |
| CAT 6 | 1Gbps | 250Mhz | 100M | Shield/unshield | Large enterprises, High Speed application |
| CAT 5e | 100Mbps | 155Mhz | 100M | Shield/unshield | Small Office/Home |
| PS: The above data will be influenced by the routers , swithces, network providers and other equipments. |
|||||
Q1: Is it possible to customize our brand information on the cable?
A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.
Q2: Can you pass FLUKE test?
A: Yes, all SL networking cable can pass Fluke channel, component and permanent link test per customers' request.
Q3: What is your MOQ of your products?
A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock
the bulk cable with us for your urgent order production.
Q4: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.
Q5: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag
and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even
can open the new tooling for your specific project.
