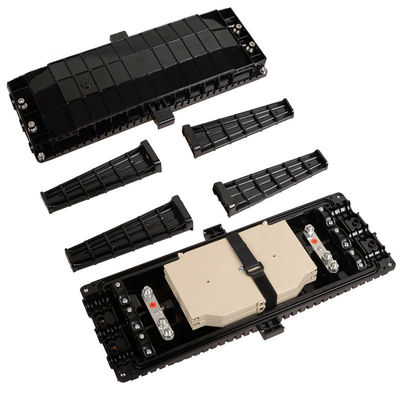

3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting

3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting
3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting

Large Image :  3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: SLR
Certification: CE,ROHS
Model Number: SL-FOSC-003
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1PCS/Carton
Delivery Time: 1-2week after payment( based on quantity)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS/DAY

3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting

Description
Type: 72 C Fiber Optic Cable Splice Joint Box Dimension: 445x220x110 MM
Number Of Inlet/Outlet Ports: 3 Inlet 3 Outlet Diameter Of Fiber Cable: Max Φ 14mm
Material: Modified Polymer Plastic Installation Method: Wall-mounted, Pole-mounting, Manhole
High Light:

72 Core Fiber Optic Splice Closure

,

14mm Fosc Fiber Optic Splice Closure

,

72 Core fiber optic splice enclosure





3 Inlet 3 Oulet7 2 Core Fiber Optic Splice Closure Horizontal Type Enclosure Optical Cable Joint Box



3 in 3 out Fiber Optic cable enclosure provide with 6 fiber cable in-out round ports.



It can be used in wall-mounting ,underground ,and direct buried application. This product is made of the high-quality PC and with the mechanical sealing structure filled with the sealing material.


The main application for vertical fiber optic splice closure is in CATV, telecommunications and fiber optic networks. They are suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.

Application:


· FTTH, FTTB, FTTC
· Telecommunication Network
· CATV
· Local Area Network


3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 0


Features:


1,Advanced internal structure design
2,Easy to re-enter, it never requires re-entry kits
3,Slide-in-lock design ,over 90º opening angle tray
4,Earthling deriving device can be installed on the house of FOSC
5,Elastic integrated seal fitting
6,Operating Temperature : -40~+65 °C

3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 1



Product Name 48C 72C 96C Fiber Optic Splice Closure
Model No. SL-FOSC-003-48C with 2PCS 24C Splicing Tray
Model No. SL-FOSC-003-72C with 3PCS 24C Splicing Tray
Model No. SL-FOSC-003-96C with 4PCS 24C Splicing Tray
Product Size (mm) 445x220x110 MM
Fiber Count 12-96
Unit Weight KGS 2.7 KGS
Qty per Carton PCS 8 PCS
Carton Size CM 47*51*46CM
Gross Weight KGS 23 KGS
Volume CBM 0.11 CBM
Diameter of Fiber Cable Max Φ14mm
Max Capacity(Cores) 96F,
Core Capacity per Tray 12 or 24
Operation Temperature -40~65 (°C)
Storage Temperature -40~65 (°C)
Material ABS
Installation Method Wall-mounted, pole-mounting, manhole
Application FTTH FTTB FTTX Network
Waterproof IP68



3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 2  3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 3



Optional Accessories List
1 Steel Tape
2 Insulation Tape
3 Abrasive Cloth
4 Earthing Wires
5 Nylon Ties
6 Labeling paper
7 Heat Shrintable Protective Sleeve
8 Desiccant
9 Special Wrench
10 Hanging Hook
11 Wall Mounting Bracket
12 Buffer Tube for Bunchy Fiber





3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 4





3 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 53 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 63 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 73 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 83 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 93 Inlet 3 Oulet 72 Core Fosc Fiber Optic Splice Closure Pole Mounting 10



Q : Why Choose us be one of your partner?
A : 1 ) Quality Assurance
     2 ) Quick Response
     3 ) Free Sample Available
     4 ) Win-Win Price offer



Q : Is OEM accepted?
A : 1 ) LOGO print On Cable jacket is ok
      2 ) Order above 500Roll, also can do your brand box free of charge.



Q : What is the method of Shippment?
A : 1 ) By Sea, FCL full container / LCL cargo is ok
     2 ) By Air, Any of the International Express, such as DHL/Fedex etc.
     3 ) By Railyway or Road Truck



Q : Can i get sample?
A : Sample is available upon request.



Q : What is the Payment Terms?
A : TT,Western Union, Paypal. 30% Deposite to Confirm Order , 70% Balance Paid Before Shippment.
