1x64 1x32 1x16 Fiber PLC Splitter

1x64 1x32 1x16 Fiber PLC Splitter
1x64 1x32 1x16 Fiber PLC Splitter 1x64 1x32 1x16 Fiber PLC Splitter 1x64 1x32 1x16 Fiber PLC Splitter

Large Image :  1x64 1x32 1x16 Fiber PLC Splitter

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SLR
Certification: CE ROHS
Model Number: SL-mini PLC-1x16 UPC
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: Blister or Bag packing
Delivery Time: 8 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 7000pcs/day

1x64 1x32 1x16 Fiber PLC Splitter

Description

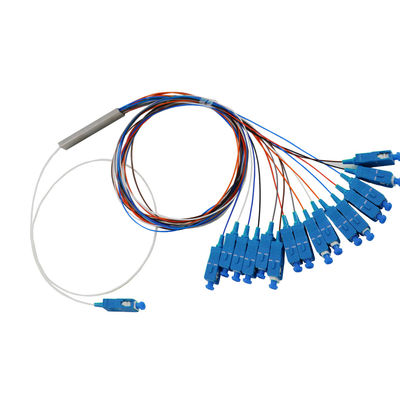

Product Name Name: 1x16 SC/UPC Mini Fiber PLC Splitter Type: 1: 16 PLC Splitter
Model Types: 1xN Or 2xN Splitter Parameter: 1x16 (1*4 1*8 1*16 1*64 1*28 2*4 2*8 2*32. Also Ok)
Fiber: SM Cable Diameter: 900um
Cable Length: 1 Meter. OEM Connector: SC / UPC. Blue Connector
High Light:

1x64 900um Fiber PLC Splitter

,

1meter 1x16 Fiber PLC Splitter

,

900um 1x32 PLC Fiber Splitter



Ftth fiber optic plc splitter 1*64 1x32 1x16 1*8 1*4 steel tube plc Splitter



Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of
quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity,
It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

Bare fiber PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with
specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products
meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.



We provides whole series of 1xN and 2xN splitter.

1x64 1x32 1x16 Fiber PLC Splitter 0





















1x64 1x32 1x16 Fiber PLC Splitter 1

products that are tailored for specific applications.



Specifications:


PLC splitter
1.smaller size
2.lower loss of polarization and insertion
3.good directing fuction
4.stable and reliable.

1x64 1x32 1x16 Fiber PLC Splitter 2



Application:


• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)





Feature:


· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm



1x64 1x32 1x16 Fiber PLC Splitter 3



Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1 7.4 10.5 13.8 17.1 20.4
Insertion Loss without Connector (Max) dB 3.8 7.1 10.2 13.5 16.8 20.1
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6



Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4 7.7 10.8 14.1 17.4 20.6
Insertion Loss without Connector (Max) dB 4.3 7.4 10.5 13.8 17.1 20.3
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6





Enviroment Conditions
Operationg Temperature -40 ~ +85
Operationg Temperature -40 ~ +85
Operating Humidity %RH 93
Storage Humidity %RH 93



Cable Info
Fiber Type G 657A
Pigtail Cable 900 um
Connector SC/APC
2xN Splitter Only Single Chip
