Product Details:
|
Product Name Name: | 1x8 SC Plug-In Fiber PLC Splitter | Type: | 1:8 Insert Card Type PLC Splitter |
---|---|---|---|
Parameter: | 1x8 (1*4 1*8 1*16 1*64 1*28 2*4 2*8 2*32. Also Ok) | Fiber: | Single Mode Fiber |
Cable Diameter: | 900um | Cable Length: | 1 Meter. OEM |
Connector: | SC | ||
Highlight: | 900um 1meter Cassette PLC Splitter,900um 1x8 Cassette PLC Splitter,ROHS 900um 1x8 PLC Splitter |

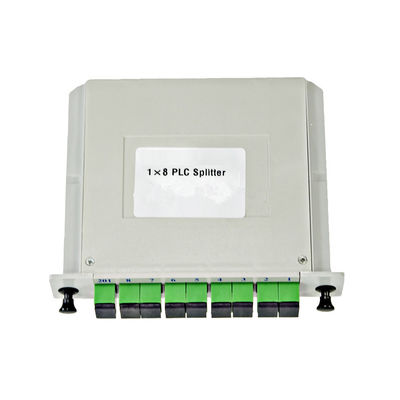

1:8 Cassette PLC Splitter Fiber Splitter SC/APC Mini Plug Fiber Optic Splitter Box
PLC Splitter is based on planar lightwave circuit technology. SL 1x8 Fiber PLC Splitter can distribute or combine 1 optical signal into 16 outputs fibers.
Mini plug-in PLC splitter is now widely used in FTTx project, especially at the distribution points near the end users of the FTTx networks. It provides fast installation and low space requirement helping to alert the deployment of FTTs projects. Fiber pigtails for input and output can be directly connected with this passive component easily.
1x8 Fiber PLC Splitter in Mini plug-in Type, G.657A Fiber, FC, SC, ST & LC connectors for choice, is specialized for plug and play splitter application, features high reliability, reduce installation time,small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.
Application:
• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)
Feature:
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
Parameters | Specification | |||||
Operating Wavelength (nm) | nm | 1260~1650 | ||||
Channel Number | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
Insertion Loss with Connector (Max) | dB | 7.5 | 10.7 | 13.7 | 17 | 20.7 |
Insertion Loss without Connector (Max) | dB | 7.2 | 10.5 | 13.5 | 16.5 | 20.5 |
Uniformity (Max) | dB | 0.8 | 1 | 1.4 | 1.7 | 2.5 |
PDL | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
Return Loss | dB | |||||
Directivity | dB | |||||
Packaging Dimension (LXWXH) | mm | 130*100*25 | 130*100*25 | 130*100*50 | 267*100*50 | 267*100*102 |
Enviroment Conditions | ||
Operationg Temperature | ℃ | -40 ~ +85 |
Operationg Temperature | ℃ | -40 ~ +85 |
Operating Humidity | %RH | ≤ 93 |
Storage Humidity | %RH | ≤ 93 |
Cable Info | |
Fiber Type | G 657A |
Pigtail Cable | 900 um |
Connector | SC/APC |
2xN Splitter | Only Single Chip |
