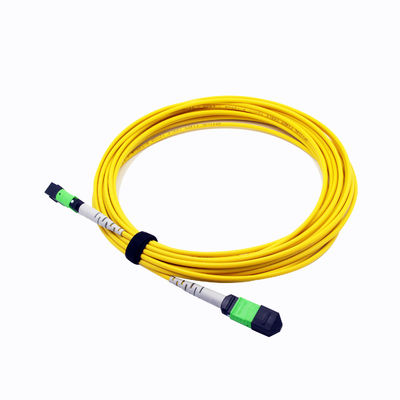

12CORES MPO MTP Patch Cord 3.0MM

12CORES MPO MTP Patch Cord 3.0MM
12CORES MPO MTP Patch Cord 3.0MM 12CORES MPO MTP Patch Cord 3.0MM 12CORES MPO MTP Patch Cord 3.0MM 12CORES MPO MTP Patch Cord 3.0MM

Large Image :  12CORES MPO MTP Patch Cord 3.0MM

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SLR
Certification: CE ROHS
Model Number: SLR-MTP-011
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 600000PCS/Month

12CORES MPO MTP Patch Cord 3.0MM

Description
Model: Fiber Optic Cable MTP MPO Connector Type: MTP - MTP Conector
Fiber Count: 8/12/24 Fiber Cable Dia: 3.0mm
Cable Length: 1 To 30 Meter Fiber Type: Single Mode
Oem: Available Color: Yellow
Application: Telecommunication Length: 0.5m/1m/1.5m/1.8m/2m/3m/5m/7.5m/10m
High Light:

SLR MPO MTP Patch Cord 3.0MM

,

12CORES 3.0mm MPO MTP Patch Cord

,

12CORES MTP Patch cable 7.5m

MPO TO MPO OPTIC FIBER PATCH CORD SM 12CORES PVC JACKET YELLOW COLOR 3.0MM MTP MPO FIBER



Two MPO Female connectors are terminated at the ends of the fiber cable is called MPO fiber optic patch cord. Due to the compact design of the MPO connector, the MPO patch cord has multi cores and small size. MPO jumpers are available in a variety of high-density cabling systems, fiber-optic communication systems, cable television networks, telecommunications network LANs, wide area networks, and FTTx.



Features:



MTP/MPO connector type available in Male and Female.
MPO Female connector is without PIN, MPO male connector with PIN.
Fiber type available in single-mode (G652D, G657A1, G657A2), multi mode (OM3, OM4, OM5).
MPO MTP connectors Insertion loss type: available in Standard, Elite / Low Loss.
MPO/MTP connector types have 4/8/12/16/24/32/48 fiber.

Cable diameter normal is 3.0mm round cable, we also have flat cable, 4.5mm double shealth cable, armoured cable, ect.

MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement).
Length can be customized according to your requirements.
MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.
Factory terminated & tested with guaranteed quality: End face test, polarity test, insertion loss and return loss test, 3D test,ect.
High density to dramatically save space




Applications:


※Data Center Interconnect
※High-Density Cross Connect
※Backbone Installations
※elecommunication Networks
※Broadband/CATV Networks
※Test Labs
※LAN/WAN Premises.



Fiber Count 8 - 48 Fiber
Fiber Type SM : OS2 9 / 125 um
MM : OM3 / OM4 50/125 um
Connector Type MPO ,MTP, MTP Pro
Polarity Type A, Type B, Type C
Insertion Loss SM: ≤0.75dB (Standards) ,≤0.35dB (Elite Low)
MM:≤0.50dB (Standards) ,≤0.30dB (Elite Low)
Return Loss SM: UPC≥50dB,APC≥60dB
MM: ≥20dB
Wavelength SM:1310/1550nm MM:850/1300nm
Transmition Length OM4: 150m at 40/100G, 550m at 10G,
OM3: 100m at 40/100G, 300m at 10G
Working Temp. ‘-40℃ to + 75
Storage Temp. ‘-40℃ to + 85
Standards ROHS, CE
Telecordia GR-1435-CORE
IEC 61753-1
IEC 61754-7
IEC 61755-3-31/32
TIA 605-4
TIA 568.3 D
YD/T1272.5



12CORES MPO MTP Patch Cord 3.0MM 0



12CORES MPO MTP Patch Cord 3.0MM 112CORES MPO MTP Patch Cord 3.0MM 212CORES MPO MTP Patch Cord 3.0MM 312CORES MPO MTP Patch Cord 3.0MM 412CORES MPO MTP Patch Cord 3.0MM 5
