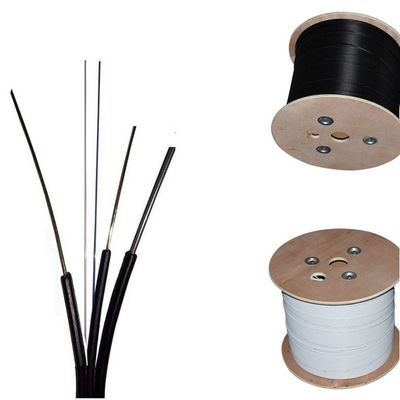

GJYXCH 4 Core Drop Cable

GJYXCH  4 Core Drop Cable
GJYXCH  4 Core Drop Cable GJYXCH  4 Core Drop Cable GJYXCH  4 Core Drop Cable

Large Image :  GJYXCH 4 Core Drop Cable

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SL RELIANCE
Certification: CE ROHS
Model Number: GJYXCH
Payment & Shipping Terms:
Minimum Order Quantity: 100KM
Price: Negotiable
Packaging Details: 1KM per Drum, 2KM per Drum
Delivery Time: 2 weeks after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 600KM/Day

GJYXCH 4 Core Drop Cable

Description
Product Name: Drop Fiber Optic Cable TYPE: 4C FTTH Drop Wire
Model: GJYXCH Fiber Count: 1 To 12 Fiber
Structure: FO, 2 Steel Wire , 1.0mm Steel Wire,LSZH JACKET Diameter: 5.0*2.0MM
Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Application: Fiber Optic Cable Fittings
Jacket: LSZH Jacket Strength Member: Metallic Wire
Cable Length: 1-2KM / Drum Color: White/Black
High Light:

GJYXCH 4 Core Drop Cable

,

GJYXCH Drop Fiber Optic Cable

,

12 Fiber 4 Core Drop Cable





FTTH FIG 8 STEEL WIRE MESSENGER GJYXCH 4 CORE OPTIC FIBERS DROP CABLE



Keywords: Optic fiber drop cable GJYXCH, with two parallel steel wire and 1.0mm self-supporting wire



SL Aerial Self-supporting FTTH drop cable is constructed with 1 core to 12 core single-mode fiber (G.657A1 G.657A2 ). The cable isprotected by 2 steel wire member and a LSZH outer jacket, and with an extra Steel wire messenger. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.


Product Construction

Fiber:
250µm colorfiber

Strength member:
2PCS Steel Wire.

Self-supported Member:Steel Wire

Outer Jacket:
UV and Flame resistant LSZH



Feature:

1.Soft and bendable, easy to deploy and maintenance.
2.Smaller diameter, Light weight, and high practicability.
3.Environmental protection- Low smoke, zero halogen and flame retardant sheath.



Application:
1:Best choice for access network as the access cable from outdoor to indoor
2: FTTH home use
3: FTTB use







Fiber Count 1F 2F 4F / 6F 8F / 12F
Self -Supporting Strength Member Solid Steel Wire/Stranded Steel Wire
1.0mm 1.2mm
Strength Member FRP / KFRP /Solid Steel Wire
0.45-0.5mm 0.45-0.5mm 0.45-0.5mm 0.45-0.5mm
Cable Diameter (mm) (2.0±0.1)×(5.0±0.1) (2.8±0.1)×(6.3±0.1)
Cable Weight (KG/KM) 18.5/20 19/20.5 20/21.5 34/34.5
Tensile Strength Short / Long Term (N) 200/100 for Steel wire strengh member
80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm) 1000/500
Operating Temperature Range () -40~ +70
