Single Double fiber Optical Network Unit ONU

Single Double fiber Optical Network Unit ONU
Single Double fiber Optical Network Unit ONU Single Double fiber Optical Network Unit ONU Single Double fiber Optical Network Unit ONU Single Double fiber Optical Network Unit ONU

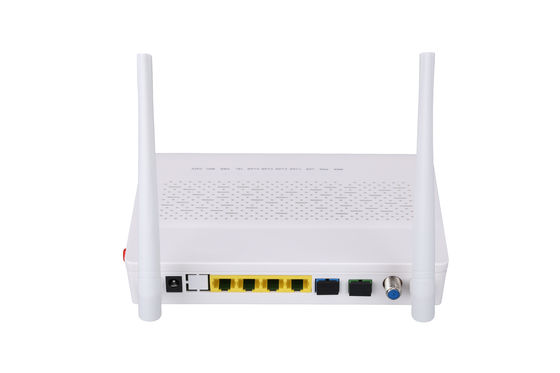

Large Image :  Single Double fiber Optical Network Unit ONU

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SLR
Certification: CE ROHS
Model Number: SL-ONU-1GE + 3FE +CATV+WIFI
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: paper carton
Delivery Time: 2 weeks after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/week

Single Double fiber Optical Network Unit ONU

Description
Model: 1GE + 3FE +CATV+WIFI Product Name: ONU Units
Type: Fiber Optic Network Unit Color: White Color
Wavelength: Tx 1310nm/Rx1490nm Material: Plastic
Warranty: 1 Year Application: FTTH FTTB FTTX Network
High Light:

Double fiber Optical Network Unit

,

Single fiber 1310nm Optical Network Unit

,

Double fiber 1310nm ONU Unit





FTTH 1GE+3FE+WIFI+CATV +1POTS Epon ONU With Single Or Double FIber ONU UNIT Optical Network Units







SL's1GE+3FE+WIFI+CATV +1POTS EPON ONU  is the terminal equipment of a series of GPON which complies fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol ,which is based on mature and stable ,and high cost-effective GPON technology which adopts high-performance GPON ZTE chipset and has high reliability ,easy management ,flexible configuration ,robustness ,good quality service guarantee(Qos).

2434GE2 supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac). It also provides the WEB management page and simplifies the configuration of WIFI.

At the same time, ONU supports two ports for VOIP application.





ONU converts optical signals transmitted via fibers to electrical signals. These electrical signals are then sent to individual subscribers. In general, there is a distance or other access network between ONU and end user's premises. Furthermore, ONU can send, aggregate, and groom different types of data coming from the customer and send it upstream to the OLT. Grooming is the process that optimizes and reorganizes the data stream so it would be delivered more efficiently. OLT supports bandwidth allocation that allows making smooth delivery of data float to the OLT, which usually arrives in bursts from the customer. ONU could be connected by various methods and cable types, like twisted-pair copper wire, coaxial cable, optical fiber, or through Wi-Fi.





Features to ONU



△ Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol

△ Support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate

△ Support bidirectional FEC and RS(255,239) FEC CODEC

△ Support 32 TCONT and 256 GEMPORT

△ Support AES128 decryption function of G.984 standards

△ Support SBA and DBA dynamically broadband allocation

△ Support the PLOAM function of G.984 standard

△ Support Dying-Gasp check and report

△ Support synchronous Ethernet

△Good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc

△ Down-link LAN ports: 4*10/100/1000M with auto-negotiation

△ Support the rogue ONU alarm function

△ Support VLAN function

△ Operation mode: HGU

△ Support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI

△ Antennas gain: 5DBi with external

△ Support: 300Mbps PHY rate IEEE802.11b/g/n, 866Mbps PHY rate IEEE802.11ac

△ Support multiply SSID

△ Multiple encryption methods:WFA,WPA,WPA2,WAPI

△ Two port for VOIP,support H.248 ,SIP protocol optional







Symbol Color Meanings
PWR Green

ON: Successfully connect with power

OFF: fail to connect with power

PON Green

ON: Register success

OFF: Register fail

LAN Green

ON: Link up correctly

Flicker: data is transmitting

OFF: link down faulty

TEL Green ON:ONU port Link UP correctly Flicker: PON registering OFF:ONU ports link down faulty
LOS Red

ON: WIFI is running

OFF:WIFI start up fail



Single Double fiber Optical Network Unit ONU 0Single Double fiber Optical Network Unit ONU 1Single Double fiber Optical Network Unit ONU 2Single Double fiber Optical Network Unit ONU 3

   Single Double fiber Optical Network Unit ONU 4





 Single Double fiber Optical Network Unit ONU 5

Single Double fiber Optical Network Unit ONU 6
