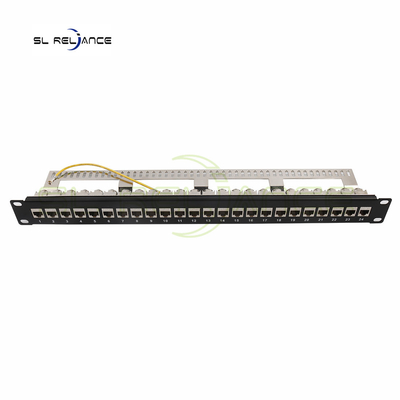

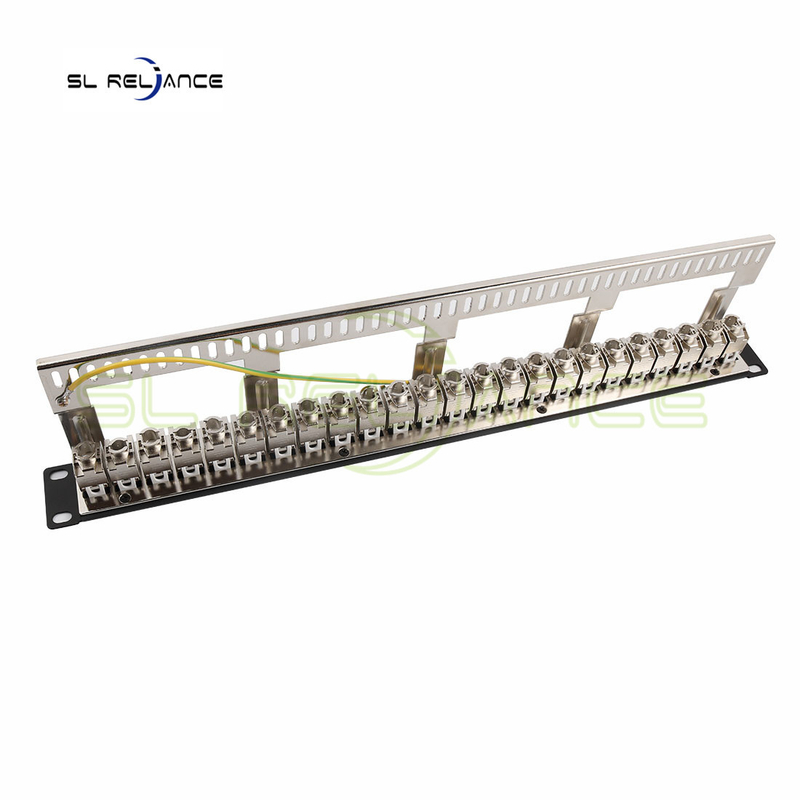

1U FTP Cat6a 24 Port Patch Panel Cabinet

1U FTP Cat6a 24 Port Patch Panel Cabinet
1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet 1U FTP Cat6a 24 Port Patch Panel Cabinet

Large Image :  1U FTP Cat6a 24 Port Patch Panel Cabinet

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: SLR
Certification: CE,ROHS
Model Number: PC1FC6AP24
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Standard packing: 1pc/ small carton 5 small cartons
Delivery Time: 1-2week after payment( based on quantity)
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/DAY

1U FTP Cat6a 24 Port Patch Panel Cabinet

Description
Name: CAT6A FTP 24PORT PATCH PANEL Material: Cold Rolled Steel Sheet/ ZINC ALLOY
Size: 1U. 19inch Number Of Port: 24 Ports
Connector Type: 24 PCS CAT6A FTP Keystone Jack
High Light:

Cat6a 24 Port Patch Panel

,

1U FTP 24 Port Patch Panel

,

19inch 1U FTP Cat6a Patch Panel

1U FTP Cat6a 24 Port Zinc Alloy Patch Panel 24Port Patch Panel

Modular Keystone Jack Type Patch Panel, with 24 Port , CAT6A Level, Support 10G , STP shielded Panel, 19 Inch with Removable back rack, 1U height , this blank patch panel well compatiable for below cable type: Cat7 Cat6A Cat6 Cat5e Cat5 Cable.


Feature:
1: Tooless, No need any extra tool. Easy for installation.
2: Easy to use and save working time for installator
, it only need couple of mins .

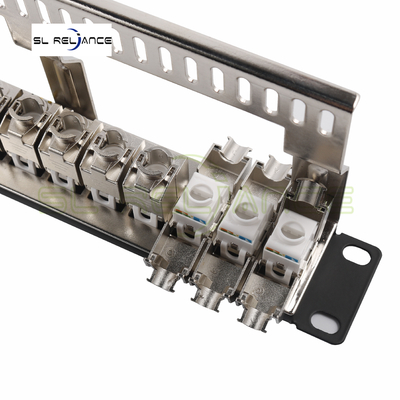

3:The panel is easy to install and uninstall keystones .

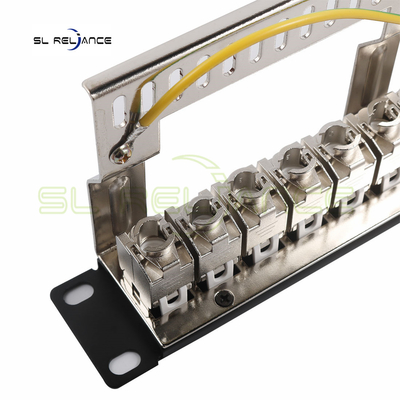

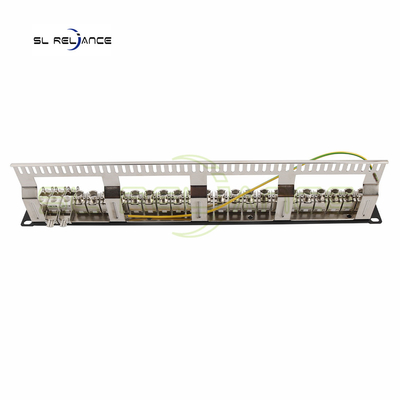

4: Removal back rack . Keep the good cable form in the rack cabinet , level up the stability .







Name 24 Port 1U Cat6A FTP Toolless Shielded Patch Panel
Connector Type FTP CAT6A KEYSTONE JACk
Size 1U 19 ‘’
Port Number 24 Port
Standard ISO/IEC11801; ANSI/TIA-568B; EN50173-1
Patch Panel Condition Full Loaded with Keystone jack
Material performance
Front Panel: Cold rolled steel
Plastic: High impact and flame retardant plastic,UL94V-0 rated
Contact: Phosphor bronze
Contact Plating: Gold plating 50µ~100µ
Mechanical performance
Plug Insertion Life: Min.750cycle
Plug Retention Force: Min.30Lbs
IDC Contactor: 22-26 AWG solid wires applied
IDC Termination Cycles: Min.200 times
Temperature: -40℃ to 70℃
Electrical Performance
Current Rating: 1.5AMP
Insulation Resistance: Min.500 Mega Ohms
Contact Resistance: Max.20milli-Ohms
Dielectric Strength: 750V AC RMS 60Hz 1min



1U FTP Cat6a 24 Port Patch Panel Cabinet 01U FTP Cat6a 24 Port Patch Panel Cabinet 11U FTP Cat6a 24 Port Patch Panel Cabinet 21U FTP Cat6a 24 Port Patch Panel Cabinet 31U FTP Cat6a 24 Port Patch Panel Cabinet 41U FTP Cat6a 24 Port Patch Panel Cabinet 5
