CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector
CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

Large Image :  CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SL
Certification: CE ROHS
Model Number: SL-JACK-2085C6A
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1000PCS/CARTON,
Delivery Time: 3-5 Days after payment
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 100K PCS per WEEK

CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

Description
Product Name: 180 Rotary UTP CAT6A Tooless Keystone Jack Model: 2085C6A
Shielded: UTP Rotary 180 Degree Type Application: Network Cabling Systems
Category: Cat6A Tooless Housing Material: PC UL94V-0
Installation: Toolless Oem/odm: Available
Spring: Phosphor Bronze & Gold-painted Testing: FLUKE
High Light:

ROHS Cat6a Keystone Coupler

,

ROHS Rj45 Keystone Connector

,

2085C6A CE Cat6a Keystone Coupler

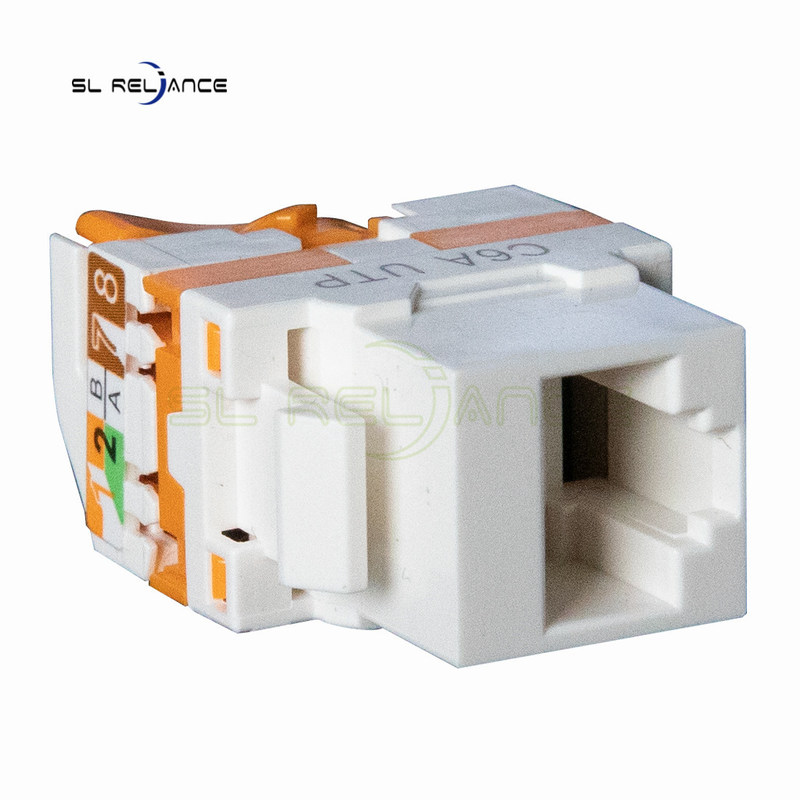

180 Degree CAT6A UTP RJ45 Keystone Jack Rotate Short 8P8C UTP Jack Modular Connector

SL keystone Jack  is designed to comply with the transmission performance of Category 6A The Keystone Jack design is a popular, universal dimension that fits into a wide range of wall outlet and enclosure products.

Material: ABS PC+ 50µ gold-plated pin
Cable release and plug in: ≥750times
Joint: ≥250times
Color:  White /Blue
Product applicationCategory 6A 10G Base-T, 500MHz
ISO/IEC 11801 3rd edition, EN 50173-1, PoE/PoE+ (IEEE 802.3af, 3at)
RJ45 jack, 8P8C
Tool-free
Unshielded
AWG-range: 26 … 22
Material: ABS UL 94V-0
Contact material: Phosphor bronze
Contact coating: Nickel, gold-plated 0.5 µ
Insertion force: Max. 30N
Operating temperature range: -20 °C to +70 °C
Mating cycles: ≥ 750
White color for option



Model Number SL2085C6A
Name Keystone Jack
TYPE UTP unshieled Rotary
Category 6A
Material ABS +PC
Spring Phosphor Bronze & Gold-painted
Wiring mode: T568A/B
IDC Terminal 22-26 AWG Cable
IDC Pin: Phosphor Bronze & Tinned
RJ45 Insert pin 8P8C 8" Gold Plated
Color WHITE
Test Channel test and Flukee test


CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 0CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 1CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 2CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 3

Electrical
Voltage Rating : AC 125V
Current Rating : 1.5 AMPS
Insulation Resistance: 500MΩ Min
Withstand Voltage: DC 1000V RMS 50-60Hz Min
Contact Resistange: 20MΩ Max
Mechanical
Insertion Force: 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength: 70N between jack and plaug;60N between wire and IDC
Durability: Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire: AWG 24-26
Material
Housing: PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing: PC(UL94V-0);PBT(UL94V-0)
Spring Wire: T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact : Phosphor bronze;Nickel plating
Shielding: T=0.25mm copper alloy with tin plated gold
Plating : 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature: -10°c-60°c
Humidity: 10-90%



CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 4CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 5CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 6CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector 7
