HDPE Insulation Data Communication Cable Cat 6a Network Cable 305M Roll

HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll
HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll
HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll

Large Image :  HDPE Insulation Data Communication Cable Cat 6a Network Cable 305M Roll

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: SLR
Certification: CE,ROHS
Model Number: SL-C6A-U/FTP-003
Payment & Shipping Terms:
Minimum Order Quantity: 100 ROLL
Price: NEGOTIABLE
Packaging Details: 305M (1000Feet)/Drum
Delivery Time: 2week after payment( based on quantity)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000ROLL per Day

HDPE Insulation Data Communication Cable Cat 6a Network Cable 305M Roll

Description
Name: Ethernet Network Cat6a Lan Cable Category: 6A NETWORK Cable
Conductor: Bare Copper Size: 23 Awg
Core Diameter: 0.57±0.01mm Insulation Material: HDPE
Shieled: Each Pair AL Foil Shieled Jacket: LSZH / PVC
High Light:

HDPE Insulation Data Communication Cable

,

Cat 6a Network Cable 305M

,

Data Communication Cable 305M

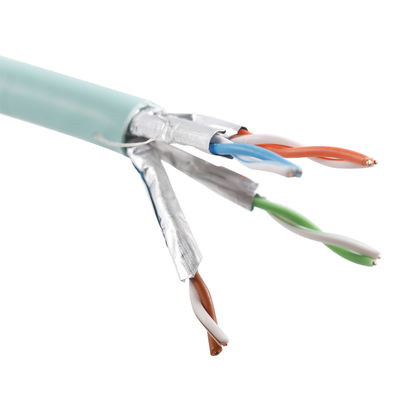

Shielded Ethernet CAT 6A LAN Cables 4Pair Communication Cable 305M roll



SL Category 6A U/FTP cables exceed Category 6A performance standards. They are specified to 500MHz and are suitable
for use in all Class EA structured wiring cable systems. Category 6A U/FTP cable supports 10 Gigabit Ethernet, Gigabit Ethernet,
Power over Ethernet, voice, and broadband video transmissions at frequencies up to 500MHz.



FEATURES AND BENEFITS
• 23 AWG solid annealed copper wire
• 4 twisted pairs individually screened and cabled together – providing
EMI immunity
• Enhanced HFFR-LS* material enables the cable to meet the
requirements of the Construction Products Regulation (CPR) EuroClass
B2ca
• Included in the Leviton Limited 25-Year System Warranty when used
in conjunction with Leviton copper connectivity. System warranties
are available for qualified projects installed by certified contractors
* Halogen Free Flame Retardant – Low Smoke



HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll 0

STANDARDS
• Designed and constructed to give optimum electrical performance to the following standards:
• ISO/IEC 11801 Class EA, IEC 61156-5
• EN50173-1 and EN 50288-10-1
• ANSI/TIA 568.2-D
• Supports 10GBASE-T and meets the design requirements of 802.11ac wireless. Recommended for PoE standards:
• IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af
• IEEE 802.3bt PoE Type 2 (30 Watts) formerly 802.3at
• IEEE 802.3bt PoE Type 3 (60 Watts)
• IEEE 802.3bt PoE Type 4 (90 Watts)
• Cisco UPoE (60 Watts) and Cisco UPoE+ (90 Watts)
• Power over HDBaseT™ PoH (95 Watts)

HDPE Insulation  Data Communication Cable Cat 6a Network Cable 305M Roll 1





Mechanical data
Conductor material Solid bare copper
Conductor insulation HDPE Cable
Jacket PVC/LSZH
Jacket Color Red, Black, White, Yellow, Blue, Orange, Green, ...OEM
Conductor diameter 23 AWG
Insulated conductor diameter 1.03 ± 0.03 mm
Outer cable diameter 7.6 ± 0.2 mm
Jacket thickness 0.52mm ± 0.3 mm
Pulling strength 110N
Minimum bend-radius 8 times outer diameter
Fire rating
PVC jacket IEC60332-1-2
LSZH jacket IEC 60332-1-2, IEC 60754-1,2 & IEC 61034-2
Application WIDELY COMPATIBLE WITH : ROUTER , Computer, Switch, Network Printer, Surveillance Camera,POE/POE+, NAS,Smart Home, Modem, Hubs, ADSL,Routers,Digital Set-Top Boxes,Smart TV,...ETC



Outer Jacket Diameter Ø7.4mm nom.
Outer Jacket Material LSZH
Conductor Material Annealed Bare Copper
Conductor Size 23 AWG (0.56±0.005mm)
Conductor Construction Solid
Insulation Material Foam Polyethylene
Conductor unit identification: Solid/stripe
Color Code: Per TIA/EIA 568-B Ind.
Shield Material: Aluminum/ Polylaminate Foil
Ind. Shield Design 100% Coverage
Conductor unit lay-up: Twisted Pairs
Drain-wire Material: Tinned Copper
Drain-wire size: 0.4 mm
Total number of conductors: 8
Outer Jacket Color: Light Gray
Weight 58 KG/KM

Q1: Is it possible to customize our brand information on the cable?
A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.



Q2: Can you pass FLUKE test?
A: Yes, all SL networking cable can pass Fluke channel, component and permanent link test per customers' request.



Q3: What is your MOQ of your products?
A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock
the bulk cable with us for your urgent order production.



Q4: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.



Q5: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag
and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even
can open the new tooling for your specific project.



Q6 : Are You Factory ?
A 6: Yes, our cable factory have 13 years production experience.
