1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router

1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router
1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router 1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router 1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router

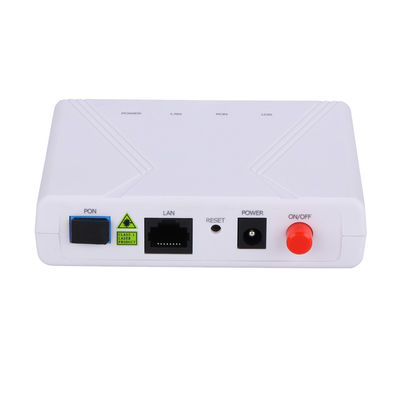

Large Image :  1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SLR
Certification: CE ROHS
Model Number: SL-ONU-1GE
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: paper carton
Delivery Time: 2 weeks after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/week

1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router

Description
Product Name: High Quality Wholesale Ftth Epon Onu /GPON ONU Price ONU Device Type: Router
Color: White Wavelength: Tx 1310nm/Rx1490nm
Material: Plastic Warranty: 1 Year
Application: FTTH FTTB FTTX Network Pon Port: One EPON Port
High Light:

1GE EPON Optical Network Unit

,

1GE Optical Network Unit ONU

,

gepon onu 1ge Single Port

EPON ONU 1GE Fiber Optical Network Unit



GEPON ONU Single Port 10/100/1000M Fiber Router Compatible HUAWE ZTE Dasan BDC. XPON ONU
Basic features (Auto-negotiation)(When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode)

Features to Gpon
•Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
•Support bidirectional FEC and RS(255,239) FEC CODEC
•Support 32 TCONT and 256 GEMPORT
•Support AES128 decryption function of G.984 standard
•Support SBA and DBA dynamically broadband allocation
•Support the PLOAM function of G.984 standard
•Support Dying-Gasp check and report
•Support synchronous Ethernet
•Support the rogue ONU alarm function
•Support multiple VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as HUAWEI,ZTE,Broadcom,etc.

Features to Epon
•Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement
•Support bidirectional FEC
•Support downlink triple churning
•Support AES128 decryption function
•ONU discovery and registration process implemented by Pure hardware
•Support the report of the CTC requirement
•Support Dying-Gasp check and report
•Support OAM remote management
•Support VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,HUAWEI, etc.





Tech parameters Description
  PON quantity 1PC XPON PON
  PON interface receiving rate 1.25/2.488Gbits/s(Auto-negotiation)
  PON interface transmitting rate 1.25/1.244Gbits/s(Auto-negotiation)
Up-link interface TX Optical power 0-4dBm
  RX Sensitivity -28dBm
  Safety ONU authentication mechanism
  Fiber type Single mode singlefiber,20km


  Wavelength(nm) TX 1310nm, RX 1490nm
  Fiber port SC/PC,SC/UPC,SC/APC
Down-link interface Ethernet port 1PC*10/100/1000M with auto-negotiation
  3PCS*10/100M with auto-negotiation
Power supply 12V 1 A
Power ≤5W
Operating temperature -5~55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~70℃

1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router 0



 1GE GEPON EPON Optical Network Unit ONU Single Port 10/100/1000M Fiber Router 1
