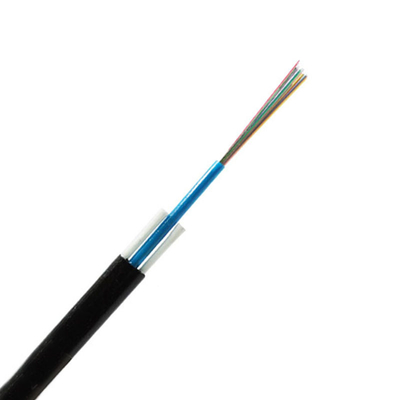

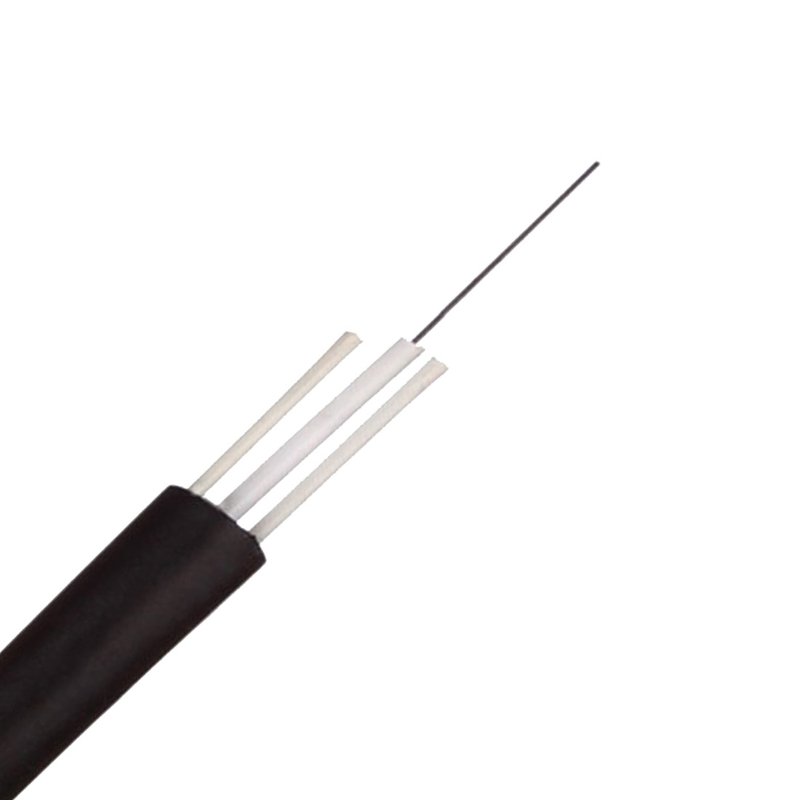

Product Details:
|
| Cable NAME: | Aerial Fiber Optic Cable | Cable TYPE: | Flat Uni-Loose Tube ADSS |
|---|---|---|---|
| FIBER Number: | 12 Fiber | FIBER Type: | G.652D SM |
| SHEATH: | PE /LSZH | Cable COLOR: | BLACK JACKET OR AS ORDER |
| Packing: | 2-4km/wooden Drum | Application: | Telecommunication |
| High Light: | ADSS FTTH Drop Fiber Optic Cable,ADSS flat drop fiber cable,12 Fibers ftth drop cable |
||
Dielectric Cables provide the simple installation of standard cable with an easy-access, single-tube design.The small, lightweight cables offer exceptional crush resistance and handle a wide range of temperatures. Compatible with industry-standard hardware and available in preconnectorized assemblies, the flat cables are the perfect solution for drop applications. A drop cable access tool is also available, making installations faster, safer and easier.
Features:
Available with up to 12-fiber
Offers the maximum bandwidth for FTTP business, etc.
Universal design
Aerial use
Dielectric
Eliminates bonding and grounding
Non-sticky gel reduces installation time and labor cost
Dielectric Rods
Excellent crush resistance
Applications:
• Aerial self-supporting
• Outdoor wiring

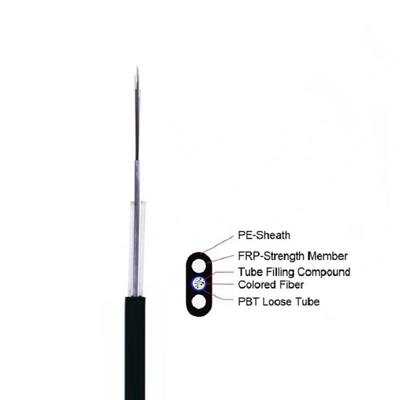

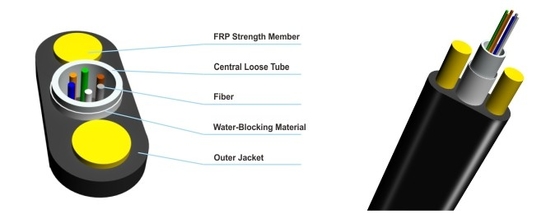

Structure and Technical Specifications
| Fiber Count | Nominal Diameter (mm) | Nominal Weight(kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install span with 1%sag | ||||
| Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy | |||
| 2~12 | 4.5X8.0 | 39 | 1500 | 600 | 1000 | 300 | 100meters | 70meters | 50meters |
| 14~24 | 4.9X8.4 | 45 | 1500 | 600 | 1000 | 300 | 80meters | 60meters | 40meters |
Note:
Larger spans can be achieved if necessary with installation sags larger than 1% of span. This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose | Aqua | ||
| Loose tube color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose |
Aqua
|
||
| OPTICAL FIBER | ||||||||||
| Fiber Type | G.652D | |||||||||
| Mode Field Diameter | @ 1310 nm | 9.2±0.4µm | ||||||||
| @1550 nm | 10.4±0.8µm | |||||||||
| Cladding Diameter | 125.0±0.7µm | |||||||||
| Core concentricity error | ≤ 0.5µm | |||||||||
| Cladding non-circularity | ≤ 1.0% | |||||||||
| Coating diameter | 245±10µm | |||||||||
| Attenuation | @ 1310 nm | ≤ 0.36 dB/km | ||||||||
| @ 1550 nm | ≤ 0.22 dB/km | |||||||||
| Dispersion | @ 1285 -1330nm | ≤ 3.4 ps/(nm.km) | ||||||||
| @ 1550 nm | ≤17.5 ps/(nm.km) | |||||||||
| Zero dispersion wavelength | 1300~1324 nm | |||||||||
| zero dispersion slope | ≤0.092 ps/(nm2.km) | |||||||||
| cable cut-off wavelength | ≤1260 nm | |||||||||
| Proof stress | ≥ 0.69 Gpa | |||||||||
| Polarization mode dispersion | ≤0.2 ps/√Km | |||||||||
| Uncabled fiber macrobending loss | Radius(mm) | 15 | ||||||||
| number of turns | 10 | |||||||||
| Max.@ 1550nm(dB) | 0.25 | |||||||||
| Max.@ 1625nm(dB) |
1
|
|||||||||
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 GYFXTY-FL XXCORE (G.652D) XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| GYFXTY-FL | cable type | |||||||||
| XXB1.1(G.652D) | XXcores SM fiber(ITU-T rec.G.652D) | |||||||||
| XXXXM | marks for meters | |||||||||
