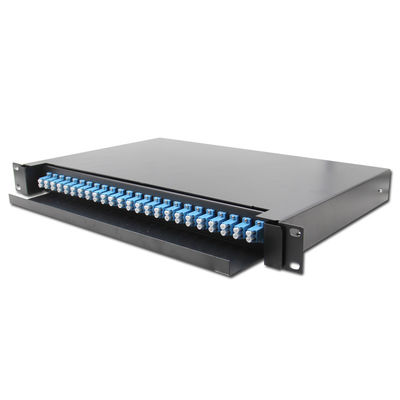

24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box

24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box
24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box

Large Image :  24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SL RELIANCE
Certification: CE ROHS
Model Number: SLR-ODF-006
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1PCS/CARTON
Delivery Time: 2Weeks after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000PCS/WEEK

24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box

Description
Name: 1U 24Port 48Core LC ODF Type: 19'' Drawer Sliding Type
Connector Type: LC Duplex Fiber Count: 48 Fiber
Size: 430*300*1U
High Light:

48Fiber LC Splicing Patch Panel Cabinet

,

24Port ODF Fiber Box

,

24Port Fiber Patch Panel Cabinet



1U 24Port 48 Core LC Rack Mount Splicing Fiber Optic Patch Panel / ODF / Termination Box





Fiber Optic Patch Panel is the device that terminates between the optical cables and the optical communication equipments, with the function of splicing, termination, storing and patching of optical cables.It consists of housing and splice tray. The splice tray is used in the cabinet for the function of splicing of the fiber optic cables. The housing is made of cold rolling steel, with powder coating. It is used in indoor environment.



Features:



1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) 19-inch standard size, light in weight and robust structure
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation





Application:


Sliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.
It's used widely in local end main cable net of fiber optic communication area. And suitable for the FTTB, FTTH system.
Environment
The operating and storage temperature: - 45 ~ + 80 ℃.
Tolerable humidity: <95%.
The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV), which is tested in 1 minute without breakdown and no flashover.







Name 1U 24Port 48 Core LC Full Loaded ODF
Type Drawer Type
Port No. 24 Port
Connector Type SC Simplex
Fiber Count 48 Fiber
Length 430mm
Width 300mm
Height 1U
Plug life more than 1000 times
Material cold rolled sheet
Surface Treatment Electrostatic painting
Structure 19'' Rack Mounted
Work Temperature -40~+85℃









24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 024Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 124Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 224Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 324Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 4

24Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 524Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 624Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 724Port 48 Core LC Splicing Fiber Patch Panel Cabinet / ODF Fiber Box 8
