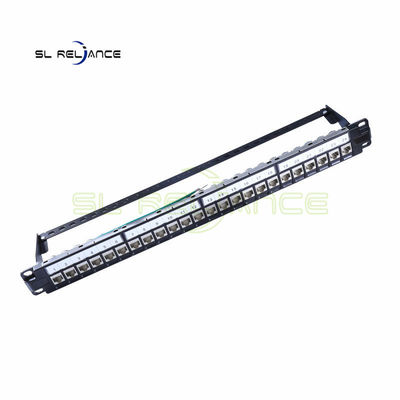

STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack

STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack
STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack

Large Image :  STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: SLR
Certification: CE,ROHS
Model Number: PC1FC7P24
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Standard packing: 1pc/ small carton 5 small cartons
Delivery Time: 1-2week after payment( based on quantity)
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/DAY

STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack

Description
Name: Panel Networking Rackmount 19inch Use: Cabinet, Data Center
Material: Cold Rolled Steel Sheet Height: 1U
Number Of Port: 24 Ports Connector Type: 24 PCS CAT7 FTP Keystone Jack
High Light:

1U FTP Patch Panel Cat 7 24Port

,

CE STP Patch Panel Cat 7 24Port

,

PC1FC7P24 Shielded 19 Inch Patch Rack

FTP Cat7 Patch Panel 24Port STP Panel Full Loaded Shielded 24 PCS X Cat7 Keystone Jack



High Density Horizontal Category 7 FTP patch panel offers high performance, this Panel can be terminated quickly and easily with a variety of cables.



Characteristic:



High performance compliant with ANSI/TIA 568 C.2 standard at component Level

Compliant with IEC60512-99-001 suitble for use with IEEE 802.3(PoE+) applications.

Suitable for 22-26AWG stranded and solid wire

Fully Shielded die-cast keystone body is robust as well as offering outstanding performance in eliminating alien cross talk

Quick and easy tool-less "butterfly" style termination

Built-in retracting dustcovers

Clear numbering on the front provides a quick, easy way to identify cable run

Supplied with a fixed rear cable management bar, cable ties, 4sets of M6 black cage nuts and long earth wire with fixing screws.







Name 24 Port 1U Cat7 FTP Toolless Shielded Patch Panel

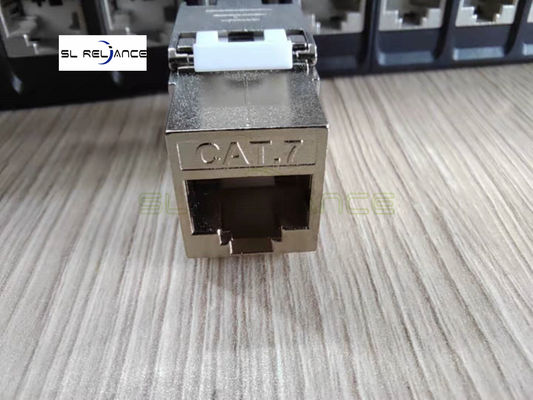

Connector Type FTP CAT7 KEYSTONE JACk
Size 1U 19 ‘’
Port Number 24 Port
Standard ISO/IEC11801; ANSI/TIA-568B; EN50173-1
Patch Panel Condition Full Loaded with Keystone jack
Material performance
Front Panel: Cold rolled steel
Plastic: High impact and flame retardant plastic,UL94V-0 rated
Contact: Phosphor bronze
Contact Plating: Gold plating 50µ~100µ
Mechanical performance
Plug Insertion Life: Min.750cycle
Plug Retention Force: Min.30Lbs
IDC Contactor: 22-26 AWG solid wires applied
IDC Termination Cycles: Min.200 times
Temperature: -40℃ to 70℃
Electrical Performance
Current Rating: 1.5AMP
Insulation Resistance: Min.500 Mega Ohms
Contact Resistance: Max.20milli-Ohms
Dielectric Strength: 750V AC RMS 60Hz 1min





STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 0

STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 1STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 2STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 3STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 4STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 5STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 6STP FTP Patch Panel Cat 7 24 Port Full Loaded Shielded 19 Inch Patch Rack 7
