MPO/MTP - LC 12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure

MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure
MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure

Large Image :  MPO/MTP - LC 12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: SL RELIANCE
Certification: CE ROHS
Model Number: SLR-ODF-016
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1PCS/CARTON
Delivery Time: 2Weeks after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000PCS/WEEK

MPO/MTP - LC 12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure

Description
Name: 1U To 4U MPO MTP Patch Panel Type: 19'' Drawer Type Patch Panel
Connector Type: MPO / MTP Size: 1U ~ 4U
Material: Cold Rolled Steel Application: Data Center
High Light:

12F Patch Panel Cabinet

,

12F 4u Fiber Enclosure

,

Cassette Modular Patch Panel Cabinet

1U  2U  4U MPO / MTP - LC Slide Drawer Design Patch Panel 12F Cassette Modular Type

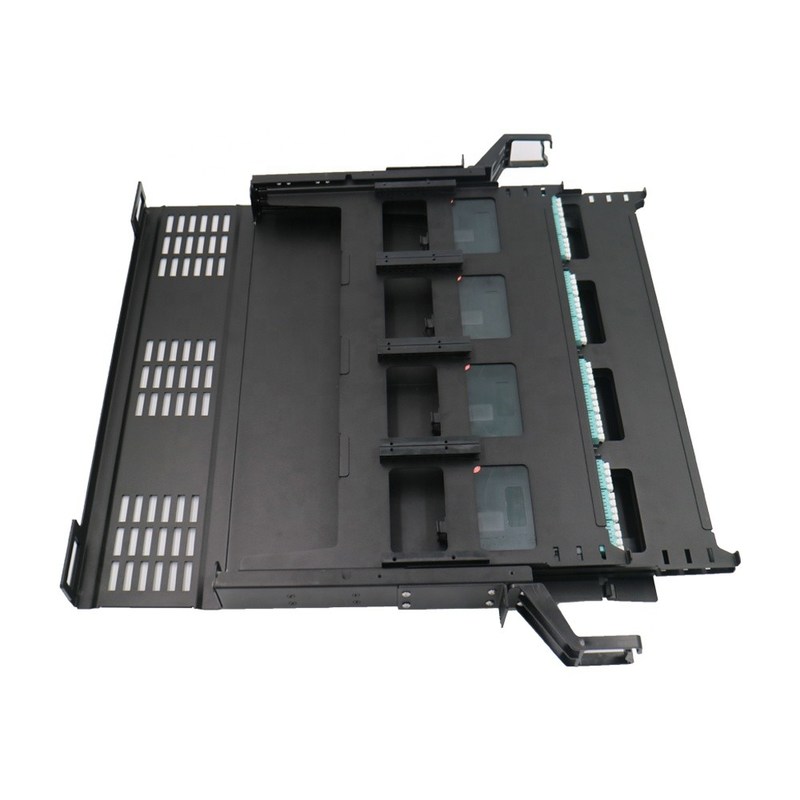

MPO/MTP Patch panel is made of CRS Cold rolled steel, Designed for 19" rack-mount cabinet. Rack mounted. holds up to 4 pcs Fiber Adapter Panels or 4pcs of HD MTP/MPO-LC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space.

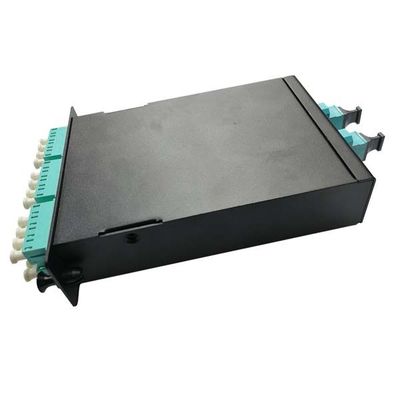

Ultra high density MTP/MPO-LC Patch panel and cassettes address today's requirements for increasingly higher  density levels, are fitted with 12 Fibers and have array adapters on the front side and MTP/MPO at the rear. This  cassette is tailor-made for optimizing cable management, speed deployment, and improving flexibility and manage  ability for lower installation costs.





Application:

-Data Center infrastructure;

-Storage Area Network;

-Fiber Channel;

-Emerging 40 and 100Gbps protocols compatible.



Feature:

-After installation of cross screw, the surface and distribution frame are flat and raised, and the touch is flat to avoid friction;

-It adopts standard unit structure size and is suitable for the installation of various cabinets and racks;

-The back and side support multiple optical cables to enter, the optical cable inlet is enlarged to facilitate multiple optical cables to enter, and fixed with optical cable fixing column or metal reinforcement.





Model Dimension Material  Max capacity
Fiber Count
EnClosure Type Height

Compliant

Modular
SL-UHD-1U 482.6*455*44mm CRS Cold Rolled Steel 144 Rack Mountable 1U TIA / EIA -568-C.3 12*12F Modular
SL-UHD-2U 482.6*455*89mm CRS Cold  Rolled Steel 288 Rack Mountable 2U TIA/EIA -568-C.3 24*12F Modular
SL-UHD-4U 482.6*455*177mm CRS Cold Rolled Steel 576 Rack Mountable 4U TIA / EIA- 568-C.3 48*12F Modular







MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 0MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 1MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 2MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 3MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 4MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 5







MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 6MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 7MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 8MPO/MTP - LC  12F Cassette Modular Patch Panel Cabinet 4u Fiber Enclosure 9

Model Dimension Material  Max capacity
Fiber Count
EnClosure Type Height

Compliant

SL-UHD-1U 482.6*455*44mm CRS Cold Rolled Steel 144 Rack Mountable 1U TIA / EIA -568-C.3
