Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable

Description
Product Name: Fiber Cable With Power Wires Hybrid Cable Application: Aerial Duct Pipeline
Fiber Count: 2-288 Core Jacket: Black MDPE
Structure: Multi Loose Tube Cable Type: Armored
Package: 2km/roll Armored: Corrugated Steel Tape
High Light:

24core Hybrid Optic Copper Cable

,

24core Overhead Fiber Optic Cable

,

2 core Hybrid Optic Copper Cable



GDTS Optical Fiber Cable For Access Network With Copper Wire Electrical Hybrid Cable



Hybrid Optical And Electrical Fiber Optic Cable With Corrugated Steel Tape Armour​

Composite or Hybrid Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.


Super Advantage:
Hybrid Fiber Optic Cable, set fiber and power transmission and distribution cable at a suit, avoid secondary wiring, which can effectively reduce the construction, network construction and other fees.


Product Characteristics:

1: Photoelectric integration, solve the problem of equipment power and signal transmission, provide centralized monitoring and maintenance of equipment power
2: Improve power manageability and reduce power supply coordination and maintenance
3: Reduce procurement costs and save construction costs
4: The precision control of the fiber length ensures that the fiber has good tensile performance and temperature characteristics
5: It is mainly used in DC remote power supply system of distributed base stations to connect BBU and RRU
6: Applicable to duct and aerial installations



Applications:
1: Can be used in Overhead, Pipeline, Duct, Direct Buried
2: Can be used in outdoor distribution box
3: Can be used in Base stations
4: Can be used in instruments, equipments connect to the optic networks
5: Can be installed in Optical communication equipment room,

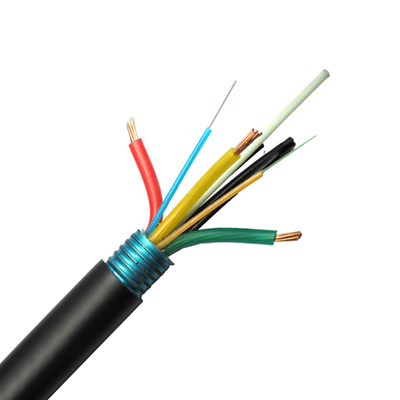

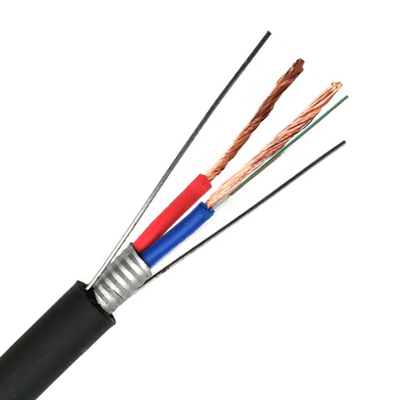

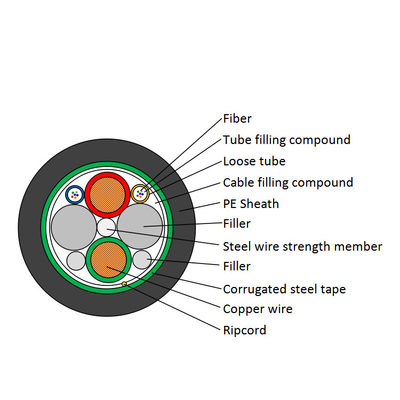

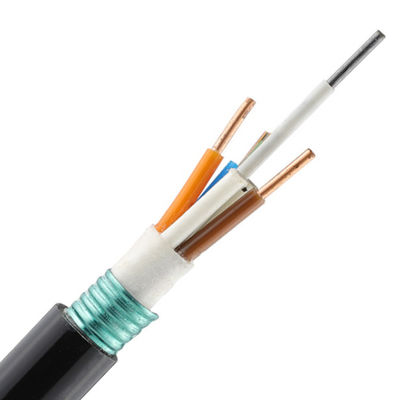

Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 0Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 1Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 2Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 3Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 4



Technical Specification of fiber optic/copper hybrid fiber cable
Cable Type Fiber counts Cable Diameter (mm) Weight (kg/km) Tensile Strength(N) Crush Resistance(N/100mm
Long -Term Short -Term Long -Term Short -Term
GDTS-2~24 2×1.5 2--24 11.2 132 600 1500 300 1000
GDTS-2~24 2×2.5 2--24 12.3 164 600 1500 300 1000
GDTS-2-24 2×4.0 2--24 13.4 212 600 1500 300 1000
GDTS-2~24 2×5.0 2--24 14.6 258 600 1500 300 1000
GDTS-2~24 2×6.0 2--24 15.4 287 600 1500 300 1000
GDTS-2~24 2×8.0 2--24 16.5 350 600 1500 300 1000



Notes:

1. 2*1.5/2*2.5/2*4.0/2*6.0 is the number of specification of the conductor.
2. Different conductor specification can be make as required.
3. Different Fiber specification can be make as required.





Cable Sheath Marking
XXXOFC 2021 GDTS XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GDTS cable type
XXXXM marks for meters







Item   Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.







Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 5Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 6



Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300~1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235~250 235~250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05



Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz.Km MHz.Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 7Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 8Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 9Access Network 2-24core Hybrid Optic Copper Cable / Overhead Fiber Optic Cable 10
