Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores

Description
Product Name: GYXTC8S Fiber Optic Cable Application: Aerial Cable
Number Of Conductors: 12 Cores Type: Fig 8 Aerial Fiber Optic Cable
Jacket: Black PE Fiber Type: G652D
Strength Member: Steel Wire Strength Member
High Light:

GYXTC8S Figure 8 Optical Fiber Cable

,

Figure 8 Optical Fiber Cable 12 Cores

,

GYXTC8S self supporting fiber optic cable





Uni Tube GYXTC8S Self - Supporting Figure 8 Aerial Fiber Optic Cable



GYXTC8S is an outdoor use optical fiber cable suitable for aerial applications.

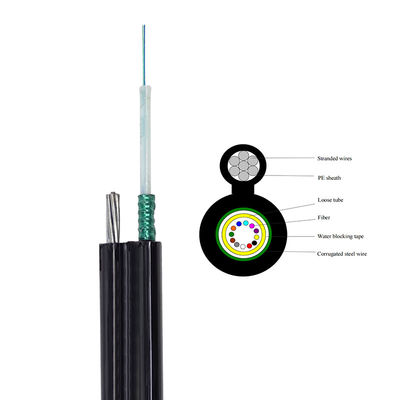

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a  PSP SteelTape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.



Product Characteristics:



• Steel wire  have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel





Fiber Cores Cable Diameter (mm) Cable Net Weight (Kg/km) Min. Bending Radius (mm) Min. Tensile Strength (N) Min. Crush Pressure (N/100mm)
Static State Dynamic State Short Term Long Term Short Term Long Term
2-12 Core 7.6x14.5 120 120 240 3000 1000 1000 300
16-24 Core 8.2x15.1 130 130 260 3000 1000 1000 300
Operating Temperature -40 - +70Degrees



Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 0Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 1Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 2Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 3Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 4

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 5



Cable Sheath Marking
XXXOFC 2021 GYTA53 XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYTA53 cable type
XXXXM marks for meters







Item   Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.







Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 6



Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300~1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235~250 235~250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05



Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz.Km MHz.Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 7Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 8Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 9Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores 10
