Product Details:
|
| Model: | MTP Fiber Optic Truck Cable | Connector Type: | MTP MTP |
|---|---|---|---|
| Fiber Count: | 8/12/24 Fiber | Cable Dia: | 3.0mm |
| Cable Length: | 1 To 30 Meter | Fiber Type: | OM3 |
| Length: | Customized Lengths(1m/2m/3m+1 | Oem: | Available |
| High Light: | 10 Gigabit MPO MTP Patch Cord,3.0mm MPO MTP Patch Cord,3.0mm 10 Gigabit Fiber Cable |
||

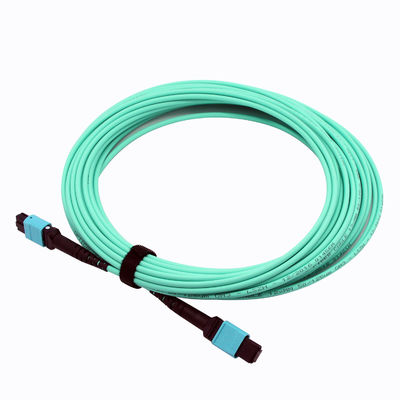

Multimode 10 Gigabit MTP Fiber Jumper MTP Patch Cord MTP Fiber Optic Patch Card
MPO is a mulit-fiber connector, MPO patch cords are good for transfering speed of 40G/100G by IEEE standard ,Now MPO HD pre-termination systerm is mostly used in HD data center , fiber to bulidings , and connectoion in fiber optical splittes, receving & transfering devices of 40G/100G/QSFP+
Jumpers Are Strictly Tested Before Leaving The Factory To Ensure That The End Face Is Dust-Free, And The Insertion Loss,Return Loss And Echo Are Meet International Telecommunication Standards.
Fiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTX, Active dvice termination, Metro, Premise installations. Data Processing networks communication rooms, fiber optic communication system, defense combat readiness, etc.
Features:
※Polarity available in Type A, Type B, Type C, Type R
※Insertion loss type available in Standard, Elite / Low Loss
※Fiber count available in 8, 12, 24, 48
※MTP/MPO connector type available in Male, Female, Male to Female
※Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
※Cable jacket type available in OFNR, LSZH, OFNP
※Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
※Cable length available in 1 to 999 meters
※Cable type available in round, ribbon
※Improve and simplify fiber routing, decrease fiber management space
※Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS
Applications:
※Data Center Interconnect
※High-Density Cross Connect
※Backbone Installations
※elecommunication Networks
※Broadband/CATV Networks
※Test Labs
※LAN/WAN Premises.
| Fiber Count | 8 - 48 Fiber |
| Fiber Type | SM : OS2 9 / 125 um MM : OM3 / OM4 50/125 um |
| Connector Type | MPO ,MTP, MTP Pro |
| Polarity | Type A, Type B, Type C |
| Insertion Loss | SM: ≤0.75dB (Standards) ,≤0.35dB (Elite Low) MM:≤0.50dB (Standards) ,≤0.30dB (Elite Low) |
| Return Loss | SM: UPC≥50dB,APC≥60dB MM: ≥20dB |
| Wavelength | SM:1310/1550nm MM:850/1300nm |
| Transmition Length | OM4: 150m at 40/100G, 550m at 10G, OM3: 100m at 40/100G, 300m at 10G |
| Working Temp. | ‘-40℃ to + 75 ℃ |
| Storage Temp. | ‘-40℃ to + 85 ℃ |
| Standards | ROHS, CE Telecordia GR-1435-CORE IEC 61753-1 IEC 61754-7 IEC 61755-3-31/32 TIA 605-4 TIA 568.3 D YD/T1272.5 |
