Product Details:
|
| Model: | XPON 1GE 1FE WIFI CATV | Product Name: | FTTH. ONU |
|---|---|---|---|
| Type: | Fiber Router | Color: | White |
| Wavelength: | Tx 1310nm/Rx1490nm | Material: | Plastic |
| Warranty: | 1 Year | Application: | FTTH FTTB FTTX Network |
| High Light: | Single Band XPON ONU WIFI,CATV XPON ONU WIFI,2.4Ghz GPON ONT Modem |
||

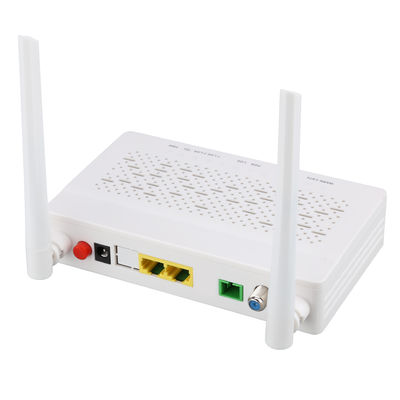

1GE 1FE 2.4Ghz WIFI ONT Single Band CATV RF GPON ONU Products XPON ONU Fiber Optical Network Unit
Optical Network Unit (ONU) / Optical Network Terminal (ONT).
ONU converts optical signals transmitted via fibers to electrical signals. These electrical signals are then sent to individual subscribers. In general, there is a distance or other access network between ONU and end user's premises. Furthermore, ONU can send, aggregate, and groom different types of data coming from the customer and send it upstream to the OLT. Grooming is the process that optimizes and reorganizes the data stream so it would be delivered more efficiently. OLT supports bandwidth allocation that allows making smooth delivery of data float to the OLT, which usually arrives in bursts from the customer. ONU could be connected by various methods and cable types, like twisted-pair copper wire, coaxial cable, optical fiber, or through Wi-Fi.
End-user devices may also be referred to as the optical network terminal (ONT). Actually, ONT is the same as ONU in essence. ONT is an ITU-T term, whereas ONU is an IEEE term. Belong to different standard bodies, they both refer to the user side equipment in the GEPON system. But in practice, there is a little difference between ONT and ONU according to their location.
Features to ONU
•Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
•Support bidirectional FEC and RS(255,239) FEC CODEC
•Support 32 TCONT and 256 GEMPORT
•Support AES128 decryption function of G.984 standard
•Support SBA and DBA dynamically broadband allocation
•Support the PLOAM function of G.984 standard
•Support Dying-Gasp check and report
•Support synchronous Ethernet
•Support the rogue ONU alarm function
•Support multiple VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as HUAWEI,ZTE,Broadcom,etc.
Features to Epon
•Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement
•Support bidirectional FEC
•Support downlink triple churning
•Support AES128 decryption function
•ONU discovery and registration process implemented by Pure hardware
•Support the report of the CTC requirement
•Support Dying-Gasp check and report
•Support OAM remote management
•Support VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,HUAWEI, etc.
| Tech parameters | Description | |
| Up-link interface | PON quantity | 1PC GPON |
| PON interface receiving rate | 2.488Gbits/s | |
| PON interface transmitting rate | 1.244Gbits/s | |
| TX Optical power | 0～4dBm | |
| RX Sensitivity | -28dBm | |
| Safety | ONU authentication mechanism | |
| Down-link interface | Fiber type | Single mode singlefiber,20KM |
| Wavelength(nm) | TX 1310nm, RX 1490nm | |
| Fiber port | SC/PC/UPC/APC | |
| Ethernet | 1PC*10/100M auto-negotiation | |
| 1PC*10/100/1000M aotu-negotiation | ||
| Power supply | 12V 1 A | |
| Power | ≤5W | |
| Operating temperature | -5~+55℃ | |
| Humidity | 10~85%(non-condensation) | |
| Storage temperature | -30~+70℃ | |
| WIFI Technical Parameter | |
| Standard | IEEE 802.11b/g/h |
| Frequency | 2.4-2.4835GHz |
| Transmission speed | IEEE 802.11b :max11Mbps |
| IEEE 802.11g: max54Mbps | |
| IEEE 802.11n:max 300Mbps | |
| Channel number | 2.4GHz: 13 |
| Data modulation | DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM |
| Multiple encryption methods | WFA, WPA, WPA2,WAPI |
| Antenna | 2T2R Mode, external antennas |
| 5DBI Gain per pcs | |
| SU MIMO: 2*2 | |
| WPS function | Support |
| CATV Technical Parameter | |
| Tech features | Description |
| Optical wavelength | 1100-1650nm(Dual fiers,No PWDM) |
| 1540-1560nm(Single fiber, internal PWDM component) | |
| Optical input range | 0~-15dBm |
| Optical return loss | ≥45DB |
| Bandwidth | 40MHz-1000MHz |
| Flatness | ±1.5DB |
| RF output level | The default:75±5dBuV@155MHZ |
| AGC control range | Regulation accuracy:±1DB |
| RF Output return loss | ≥14DB |
| RF output impedance | 75Ω |
| MER | ＞33DB @251MHZ |
| CNR | ≥43DB |
| CTB | ≥54 DB |
| CSO | ≥54DB |
