Product Details:
|
| Name Name: | 1x16 Plug-In Fiber PLC Splitter | Type: | 1X16 Insert Card Type PLC Splitter |
|---|---|---|---|
| Model Types: | SC APC Box Type Fiber PLC Splitter | Parameter: | 1x16 PLC |
| Fiber Type: | Single Mode Fiber | Connector: | SC / APC. |
| High Light: | Sc Apc 1x16 Plc Fiber Splitter,Sc Apc Ftth Plc Splitter,1x16 Plc Splitter Single Mode |
||
Mini plug-in PLC splitter is now widely used in FTTx project, especially at the distribution points near the end users of the FTTx networks. It provides fast installation and low space requirement helping to alert the deployment of FTTs projects. Fiber pigtails for input and output can be directly connected with this passive component easily.

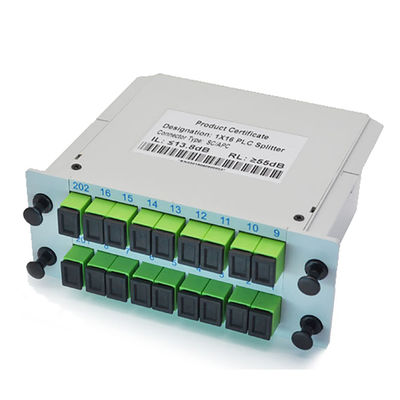

1x16 PLC Fiber Splitter, Standard LGX Cassette, SC/APC, Singlemode
SL provides a wide rangee of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be OEM
c. The length of pigtail can be also OEM ;
Feature:
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
·Excellent channel to channel uniformity
·Wide wavelength range
· Available in 250um & 900um fiber, 2mm or 3mm
Application
Installed in Outdoor Cabinet and Floor Terminal Box
FTTH Fiber to the home
PON network
CATV
Fiber LAN
| Parameters | Specification | |||||
| Operating Wavelength (nm) | nm | 1260~1650 | ||||
| Channel Number | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Insertion Loss with Connector (Max) | dB | 7.5 | 10.7 | 13.7 | 17 | 20.7 |
| Insertion Loss without Connector (Max) | dB | 7.2 | 10.5 | 13.5 | 16.5 | 20.5 |
| Uniformity (Max) | dB | 0.8 | 1 | 1.4 | 1.7 | 2.5 |
| PDL | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | |||||
| Directivity | dB | |||||
| Packaging Dimension (LXWXH) | mm | 130*100*25 | 130*100*25 | 130*100*50 | 267*100*50 | 267*100*102 |
| Enviroment Conditions | ||
| Operationg Temperature | ℃ | -40 ~ +85 |
| Operationg Temperature | ℃ | -40 ~ +85 |
| Operating Humidity | %RH | ≤ 93 |
| Storage Humidity | %RH | ≤ 93 |
| Cable Info | |
| Fiber Type | G 657A |
| Pigtail Cable | 900 um |
| Connector | SC/APC |
| 2xN Splitter | Only Single Chip |
