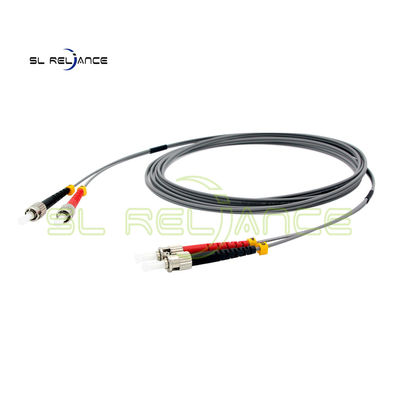

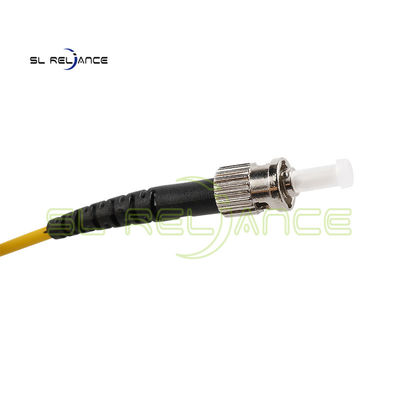

Product Details:
|
| Product Name: | Fiber Optic Patch Cord Cable | Connector: | ST- ST |
|---|---|---|---|
| Fiber Type: | Single Mode G.652D | Cable Diameter: | 2.0mm 3.0mm |
| Core: | Simplex Or Duplex | Insertion Loss: | Less Than 0.2 DB |
| Return Loss: | Bigger Than 55 DB | Application: | FTTH FTTB FTTX Network |
| High Light: | 2.0mm Fiber Optic Patch Cords,2.0mm ST To ST Fiber Jumper,FTTB G.652D Fiber Optic Patch Cords |
||
Fiber Optic Patchcords are generally called jumper cables for the connection of fiber optic equipment to equipment or patch panel to equipment. It is fiber cable terminated with connectors. There are many variations for fibers, cables and connectors. For fiber, it can be Singlemode or Multimode (50um, 62.5um, OM3 etc.) type. As for cable, there are simplex and duplex types. For connector, to name a few common ones are ST, SC, FC, LC, MTRJ, SMA etc.
Features
1:Compliant with international standard
2:Realize the activelink of optic fiber transmission
3:Low insertion loss and high return loss
4:xcellent repeatability and interchangeability
Application
1: FTTH, LAN, PON & Optical CATV, Local ring net
2: Optical fiber communication system
3:Optical fiber test equipment
4:Optical fiber sensor
5: Industry and military application
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Fiber |
Singlemode/Multimode |
| Cable |
Simplex, Duplex |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss |
≤ 0.1dB (For Singlemode Master) |
|
Return Loss (Singlemode) |
UPC ≥ 50dB |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius |
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH
